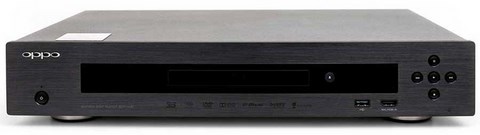

OPPO BDP-103D Audiocom Référence

The OPPO BDP-103D Audiocom Reference player is a premium multi-format Blu-ray player that delivers exceptional performance from  video, digital audio (input and HDMI + Optical and coaxial outputs) and analogue audio.

The Audiocom edition differs significantly from the OPPO BDP-103D by using a custom linear power supply, multiple regulated power supplies, it utilizes internal AC purification, incorporates a very low jitter clock system, with circuitry housed in a quiet mechanical and electrical environment.

It benefits from a custom linear power supply which uses a multiple array of low ESR capacitors to reduce power supply impedance (ESR) several times that of conventional large, low ESR capacitors. A massive toroidal transformer with 3 separate windings provide independent power supplies for video and analogue circuitry. High quality regulators bypassed with OSCON capacitors provide clean power to the main board.

In a similar way that clock jitter causes errors in sound, it also causes data related errors in video. There are as many as 4 clocks used inside the OPPO players, the most important of these is the clock for the main core processor. Here we have adopted a new 140 Femtosecond clock (0.140 psec) with +/- 0.5ppm stability, the most accurate main processor clock in any universal Blu-ray player. With this new clock video has an unprecedented level three-dimensional depth, definition and realism. Similarly audio is more coherent, with a greater presence and a more three dimensional space.

RFI/EMI noise is shielded from sensitive audio and video components by employing a material with an inner structure that dissipates RFI/EMI radiation inside the player and shields the player from external sources of interference.

Conventional types of damping have been discarded in preference for a material which targets specific frequencies of noise across a wide bandwidth. Energy we want to keep is not dampened, but unwanted energy is absorbed and dispersed as heat.


Audiocom 103D Darbee Reference Edition

The Audiocom 103D Reference edition includes

■  New custom linear power supply with multiple low noise regulated power supplies for video and audio circuitry.

■  Vastly improved, error and jitter free data processing thanks to a low jitter clock, less than 0.5 psec for main processor.

■  New high quality Gold IEC inlet with UP-OCC internal wiring to power supply.

■  New audio grade Cryofuse, non-magnetic, anti-resonance.

■  Improved chassis structure to control disc transport and component resonance.

■  New RFI/EMI shielding to control stray internal and external interference.

■  Multi-Zone Blu-ray & Region Free DVD

■  2-Year OPPO approved warranty.*

* Audiocom modifications are approved and supported by OPPO BD UK and the modified player includes a 2-year OPPO warranty.
